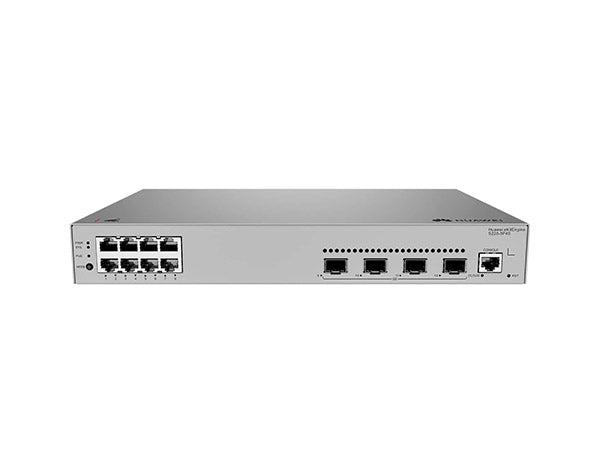

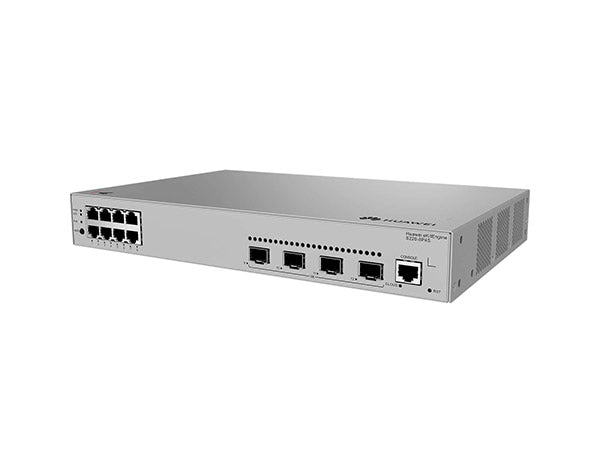

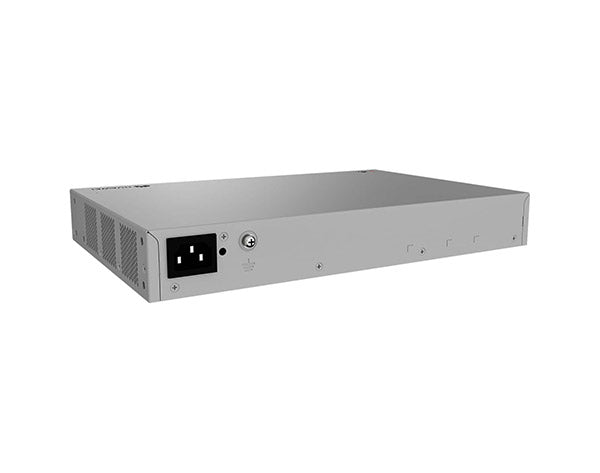

Huawei eKitEngine S220-8P4S – Layer 2 Managed Switch, 8 PoE Ports, 4 GE SFP, 24 Gbps Switching, Noise-Free
Brand: HUAWEI
Category: Layer 2 Managed Switch
Huawei eKitEngine S220-8P4S Layer 2 Managed Switch Key Product Specifications:
- Manufacturer: Huawei
- Model: S220-8P4S
- Switching capacity: 24 Gbps
- Packet forwarding: 95 Mpps
- Fixed port: 8 x 10/100/1000BASE-T ports (125W PoE+), 4 x GE SFP ports
- Chassis dimensions (H x W x D): 43.6 mm x 320 mm x 210 mm
- Chassis height: 1 U
- Weight in full configuration (including packaging materials): 3.05 kg
- Power module type: Built-in AC power module
- Rated voltage: 100 V AC to 240 V AC, 50/60 Hz
- Maximum voltage: AC input: 90 V AC to 300 V AC, 47 Hz to 63 Hz
- Maximum power consumption: Without PoE: 25.09 W, Full PoE load: 166.65 W (PoE: 125 W)
- Noise: Sound power at normal temperature: 47 dB (A), Sound pressure at normal temperature: 35 dB (A)
- Long-term operating temperature: -5 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 5% to 95% (non-condensing)
- Service port surge protection: Common mode: ±7 kV
- Power port surge protection: Differential mode: ±6 kV, Common mode: ±6 kV
- Heat dissipation mode: Air cooling, intelligent fan speed adjustment
Huawei eKitEngine S220-8P4S is a powerful Layer 2 managed switch designed for SOHO/SMB scenarios like offices, hotels, factories, and education, delivering premium switching performance at best price. It offers flexible Ethernet networking with ERPS ring protection, diversified security control, and PoE power supply for efficient connectivity. With cloud management, smart upgrade capabilities, and easy operations, the eKitEngine S220-8P4S ensures reliable network deployment and seamless management in professional environments.
Huawei eKitEngine S220-8P4S Layer 2 Managed Switch Key Product Features:
- Supports 24 Gbps switching capacity with 95 Mpps forwarding
- 8 PoE+ ports (125W total) with fast and perpetual PoE
- 4 GE SFP uplink ports for flexible networking
- ERPS (G.8032) for millisecond-level ring protection
- Multiple security features including 802.1X, DHCP snooping, ACL
- Cloud management via eKit App and web/CLI/SSH access
- Smart upgrade with one-click HOUP platform integration
- Quiet operation at 47 dB sound power (normal temperature)
- 1U design with intelligent fan speed adjustment
Huawei eKitEngine S220-8P4S Layer 2 Managed Switch Key Product Specifications:
- Manufacturer: Huawei
- Model: S220-8P4S
- Switching capacity: 24 Gbps
- Packet forwarding: 95 Mpps
- Fixed port: 8 x 10/100/1000BASE-T ports (125W PoE+), 4 x GE SFP ports
- Chassis dimensions (H x W x D): 43.6 mm x 320 mm x 210 mm
- Chassis height: 1 U
- Weight in full configuration (including packaging materials): 3.05 kg
- Power module type: Built-in AC power module
- Rated voltage: 100 V AC to 240 V AC, 50/60 Hz
- Maximum voltage: AC input: 90 V AC to 300 V AC, 47 Hz to 63 Hz
- Maximum power consumption: Without PoE: 25.09 W, Full PoE load: 166.65 W (PoE: 125 W)
- Noise: Sound power at normal temperature: 47 dB (A), Sound pressure at normal temperature: 35 dB (A)
- Long-term operating temperature: -5 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 5% to 95% (non-condensing)
- Service port surge protection: Common mode: ±7 kV
- Power port surge protection: Differential mode: ±6 kV, Common mode: ±6 kV
- Heat dissipation mode: Air cooling, intelligent fan speed adjustment
Huawei eKitEngine S220-8P4S is a powerful Layer 2 managed switch designed for SOHO/SMB scenarios like offices, hotels, factories, and education, delivering premium switching performance at best price. It offers flexible Ethernet networking with ERPS ring protection, diversified security control, and PoE power supply for efficient connectivity. With cloud management, smart upgrade capabilities, and easy operations, the eKitEngine S220-8P4S ensures reliable network deployment and seamless management in professional environments.
Huawei eKitEngine S220-8P4S Layer 2 Managed Switch Key Product Features:
- Supports 24 Gbps switching capacity with 95 Mpps forwarding
- 8 PoE+ ports (125W total) with fast and perpetual PoE
- 4 GE SFP uplink ports for flexible networking
- ERPS (G.8032) for millisecond-level ring protection
- Multiple security features including 802.1X, DHCP snooping, ACL
- Cloud management via eKit App and web/CLI/SSH access
- Smart upgrade with one-click HOUP platform integration
- Quiet operation at 47 dB sound power (normal temperature)
- 1U design with intelligent fan speed adjustment
Return Policy
Thanks for dealing with us at https://al-voip.com. Our policy allows our customers to return the products within14 days of payment; the product must be in the same condition as you received it.
Please submit the purchase receipt in order To complete your return process.
Our policy grants a full money-back guarantee for all purchases you made on our website in case you are not satisfied for any reason, faced a problem with the product or even received an incorrect order provided that Returns must be in good working order and an undamaged condition. Once you request a return, we will call you within 3 days.
Our policy grants you Zero fees when you return or replace a product but please note that only regular-priced products can be refunded, unfortunately, on-sale products cannot be refunded (replaced only).
Please note that you will not be eligible for a refund After 14 days of receiving the product.
If you have any additional questions or any problems, kindly contact us!
Shipping Policy
All orders are shipped from our headquarters in KSA to the whole kingdom and are delivered by one of our courier partners.
After placing an order, you will receive an email or SMS to confirm the order and to keep you up to date with your order you will receive an email or SMS notification with everything you need to know
We strive to ship the order as soon as possible but it depends on when your order was placed as it may take up to 6 days to be shipped
For any inquiries, please contact us.
Product Details
- Brand: HUAWEI
- Model Name: S220-8P4S
- Switching capacity: 24 Gbps
- Product Dimensions: 43.6 mm x 320 mm x 210 mm
- Product Weight: 3.05 kg
Tech Specs
