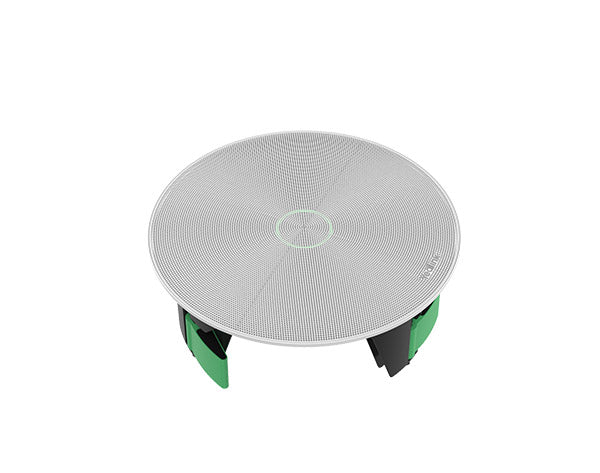

Yealink CM20 – Ceiling Microphone, 16 Mic Array, 360° Audio Pickup, Built-in DSP, PoE, AES67 Support, Conference Room Audio Solution
Brand: Yealink
Category: Ceiling Microphone
Yealink CM20 Ceiling Microphone Key Product Specifications:
- Manufacturer: Yealink
- Model: CM20
- Product Type: Ceiling Microphone
- Microphone Units: 16 omnidirectional microphones
- Pickup Zones: 8 independent zones
- Coverage Area: Up to 60 ㎡ (30 ㎡ full-duplex)
- Frequency Response: 120 Hz – 16 kHz
- Signal-to-Noise Ratio: 94 dB SPL @1kHz
- Maximum SPL: 122 dB SPL
- Sensitivity: 0 dBV/Pa @94dBSPL
- Audio Processing: Built-in DSP
- Audio Protocol: AES67
- Interface: 1 × RJ-45
- Power Supply: PoE (IEEE 802.3af, Class 3)
- Power Consumption: 5.7 W typical, 9 W peak
- Dimensions: Φ223 × 83 mm (with mesh)
- Weight: 615 g
Yealink CM20 is a professional ceiling microphone designed to deliver high-quality 360° audio capture at best price for conference rooms and business environments. Equipped with 16 omnidirectional microphones and advanced beamforming technology, it supports 8 independent pickup zones to ensure clear and inclusive voice capture. With built-in DSP, noise reduction, echo cancellation, and reverberation suppression, the CM20 provides crystal-clear communication. Its PoE-powered design and AES67 support enable easy deployment and seamless integration into modern audio networks and Yealink MVC systems.
Yealink CM20 Ceiling Microphone Key Product Features:
- Ceiling microphone with 16 omnidirectional microphone units
- 360° audio pickup with 8 independent zones
- Coverage up to 60 ㎡ for medium to large rooms
- Built-in DSP with noise reduction and echo cancellation
- AES67 support for audio network integration
- PoE powered for simple installation
- Plug-and-play with Yealink MVC systems
- Supports intelligent speaker tracking integration
- Flexible ceiling installation options

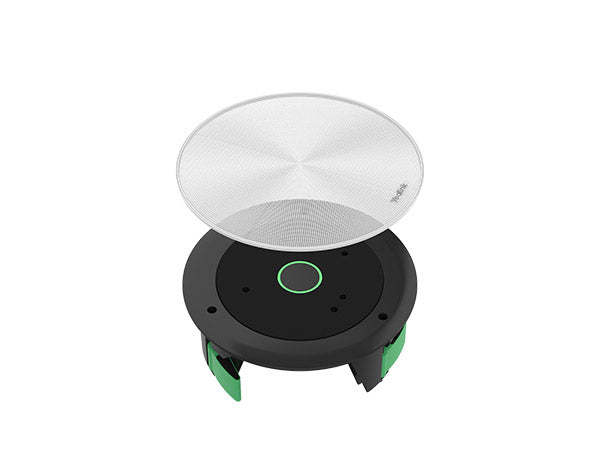

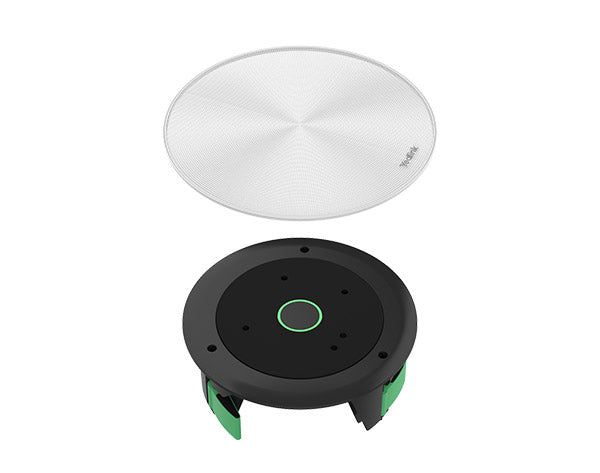

- Elegant design with removable mesh cover
Yealink CM20 Ceiling Microphone Key Product Specifications:
- Manufacturer: Yealink
- Model: CM20
- Product Type: Ceiling Microphone
- Microphone Units: 16 omnidirectional microphones
- Pickup Zones: 8 independent zones
- Coverage Area: Up to 60 ㎡ (30 ㎡ full-duplex)
- Frequency Response: 120 Hz – 16 kHz
- Signal-to-Noise Ratio: 94 dB SPL @1kHz
- Maximum SPL: 122 dB SPL
- Sensitivity: 0 dBV/Pa @94dBSPL
- Audio Processing: Built-in DSP
- Audio Protocol: AES67
- Interface: 1 × RJ-45
- Power Supply: PoE (IEEE 802.3af, Class 3)
- Power Consumption: 5.7 W typical, 9 W peak
- Dimensions: Φ223 × 83 mm (with mesh)
- Weight: 615 g
Yealink CM20 Ceiling Microphone Key Product Features:
- Ceiling microphone with 16 omnidirectional microphone units
- 360° audio pickup with 8 independent zones
- Coverage up to 60 ㎡ for medium to large rooms
- Built-in DSP with noise reduction and echo cancellation
- AES67 support for audio network integration
- PoE powered for simple installation
- Plug-and-play with Yealink MVC systems
- Supports intelligent speaker tracking integration
- Flexible ceiling installation options
- Elegant design with removable mesh cover
Return Policy
Thanks for dealing with us at https://al-voip.com. Our policy allows our customers to return the products within14 days of payment; the product must be in the same condition as you received it.
Please submit the purchase receipt in order To complete your return process.
Our policy grants a full money-back guarantee for all purchases you made on our website in case you are not satisfied for any reason, faced a problem with the product or even received an incorrect order provided that Returns must be in good working order and an undamaged condition. Once you request a return, we will call you within 3 days.
Our policy grants you Zero fees when you return or replace a product but please note that only regular-priced products can be refunded, unfortunately, on-sale products cannot be refunded (replaced only).
Please note that you will not be eligible for a refund After 14 days of receiving the product.
If you have any additional questions or any problems, kindly contact us!
Shipping Policy
All orders are shipped from our headquarters in KSA to the whole kingdom and are delivered by one of our courier partners.
After placing an order, you will receive an email or SMS to confirm the order and to keep you up to date with your order you will receive an email or SMS notification with everything you need to know
We strive to ship the order as soon as possible but it depends on when your order was placed as it may take up to 6 days to be shipped
For any inquiries, please contact us.
Product Details
- Brand: Yealink
- Model Name: CM20
- Product Type: Ceiling Microphone
- Product Dimensions: Φ223 × 83 mm
- Product Weight: 615 g
Tech Specs
- Frequency Response: 120 Hz – 16 kHz
- Signal-to-Noise Ratio: 94 dB SPL @1kHz
- Maximum SPL: 122 dB SPL
- Power Consumption: 5.7 W typical, 9 W peak
- Interface: 1 × RJ-45
Guides & Datasheet
