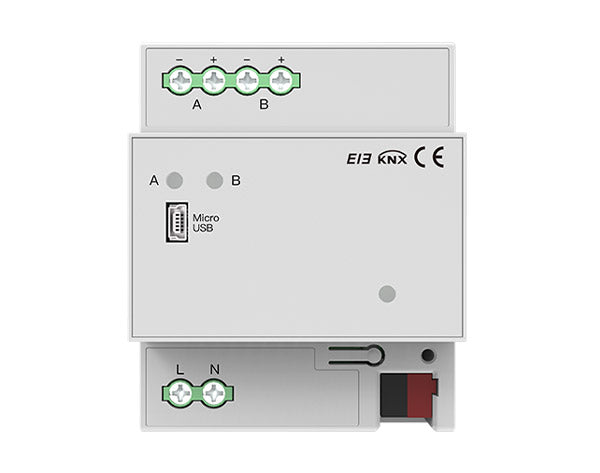

Akubela KXAC-B1DD2 DALI Dimming Module – Dual Channel KNX Gateway, 2×250mA Output, DIN Rail Installation
Akubela KXAC-B1DD2 DALI Dimming Module is a premium dual channel KNX gateway designed for professional lighting control applications at best price. This DALI Dimming Module features two DALI outputs, allowing control of connected lighting devices via KNX using broadcast, 64 individual lights, 16 groups, and 16 scenes. Supporting DALI device type 6 and device type 8 variants (8TC, 8XY coordinates, and 8 RGB), the module integrates DALI lighting systems into KNX building installations with wide voltage range supply and DIN rail mounting design.
![Akubela KXKS-B1B8-EU KNX 8 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B6-EU KNX 6 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B4-EU KNX 4 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B2-EU KNX 2 Button Scene Panel | AL-VoIP Store]()
![Akubela LY/KH440111F Shade Motor (KNX) | AL-VoIP Store]()
Akubela KXAC-B1DD2 DALI Dimming Module – Dual Channel KNX Gateway, 2×250mA Output, DIN Rail Installation
Brand: Akubela
Category: Dimming Module
Akubela KXAC-B1DD2 DALI Dimming Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1DD2
- Product Type: DALI Dimming Module
- KNX Bus Voltage: 21 ~ 30VDC (powered by the bus)
- Gateway Power Supply Voltage: 100 ~ 240VAC, 50/60Hz
- Maximum Supply Current: 2 × 250mA
- DALI Voltage: Typical value 16VDC
- Connections: EIB/KNX
- Mains Power Consumption (Total Current): <48mA
- Mains Power Consumption (Total Power): <11W
- Current Consumed through Bus: <10mA
- Power Consumed through Bus: <210mW
- Working Temperature: -5 ~ 45℃
- Storage Temperature: -25 ~ 55℃
- Transport Temperature: -25 ~ 70℃
- Working Humidity: 0 ~ 93%RH
- Product Size: 72 × 90 × 64 mm
- Weight: 0.2 kg
- Installation: 35mm DIN rail installation
Akubela KXAC-B1DD2 DALI Dimming Module is a premium dual channel KNX gateway designed for professional lighting control applications at best price. This DALI Dimming Module features two DALI outputs, allowing control of connected lighting devices via KNX using broadcast, 64 individual lights, 16 groups, and 16 scenes. Supporting DALI device type 6 and device type 8 variants (8TC, 8XY coordinates, and 8 RGB), the module integrates DALI lighting systems into KNX building installations with wide voltage range supply and DIN rail mounting design.
Akubela KXAC-B1DD2 DALI Dimming Module Key Product Features:
- Dual DALI outputs for lighting control
- Supports up to 64 DALI devices per channel
- Control modes: broadcast, 16 groups, and 16 scenes
- Supports DALI device type 6 and type 8 (8TC, 8XY, 8 RGB)
- Mixed configuration support for DT6 and DT8 devices
- Utilizes standard EIB/KNX protocol
- Wide voltage range power supply
- 35mm DIN rail installation
- Low bus and mains power consumption
- Designed for KNX building lighting integration
Akubela KXAC-B1DD2 DALI Dimming Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1DD2
- Product Type: DALI Dimming Module
- KNX Bus Voltage: 21 ~ 30VDC (powered by the bus)
- Gateway Power Supply Voltage: 100 ~ 240VAC, 50/60Hz
- Maximum Supply Current: 2 × 250mA
- DALI Voltage: Typical value 16VDC
- Connections: EIB/KNX
- Mains Power Consumption (Total Current): <48mA
- Mains Power Consumption (Total Power): <11W
- Current Consumed through Bus: <10mA
- Power Consumed through Bus: <210mW
- Working Temperature: -5 ~ 45℃
- Storage Temperature: -25 ~ 55℃
- Transport Temperature: -25 ~ 70℃
- Working Humidity: 0 ~ 93%RH
- Product Size: 72 × 90 × 64 mm
- Weight: 0.2 kg
- Installation: 35mm DIN rail installation
Akubela KXAC-B1DD2 DALI Dimming Module is a premium dual channel KNX gateway designed for professional lighting control applications at best price. This DALI Dimming Module features two DALI outputs, allowing control of connected lighting devices via KNX using broadcast, 64 individual lights, 16 groups, and 16 scenes. Supporting DALI device type 6 and device type 8 variants (8TC, 8XY coordinates, and 8 RGB), the module integrates DALI lighting systems into KNX building installations with wide voltage range supply and DIN rail mounting design.
Akubela KXAC-B1DD2 DALI Dimming Module Key Product Features:
- Dual DALI outputs for lighting control
- Supports up to 64 DALI devices per channel
- Control modes: broadcast, 16 groups, and 16 scenes
- Supports DALI device type 6 and type 8 (8TC, 8XY, 8 RGB)
- Mixed configuration support for DT6 and DT8 devices
- Utilizes standard EIB/KNX protocol
- Wide voltage range power supply
- 35mm DIN rail installation
- Low bus and mains power consumption
- Designed for KNX building lighting integration
