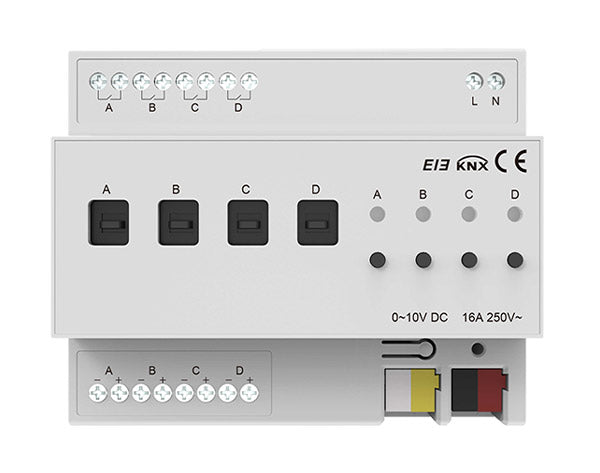

Akubela KXAC-B1DV4 Dimmer Module 4 Gang 0-10V KNX, DIN Rail Installation, Scene & Preset Control
Akubela KXAC-B1DV4 Dimmer Module is a premium 4 Gang 0-10V KNX add-on device designed for smart home and building control systems at best price. This Dimmer Module supports switch, relative, and absolute dimming functions along with scene and preset control, stair light function, bus reset, and manual dimming capability. With output status indication and error reporting, it delivers stable and efficient lighting control performance at best price.
![Akubela KXKS-B1B8-EU KNX 8 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B6-EU KNX 6 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B4-EU KNX 4 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B2-EU KNX 2 Button Scene Panel | AL-VoIP Store]()
![Akubela LY/KH440111F Shade Motor (KNX) | AL-VoIP Store]()
Akubela KXAC-B1DV4 Dimmer Module 4 Gang 0-10V KNX, DIN Rail Installation, Scene & Preset Control
Brand: Akubela
Category: Dimmer Module
Akubela KXAC-B1DV4 Dimmer Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1DV4
- Product Type: Dimmer Module
- Channels: 4 Gang 0~10V
- KNX Bus Voltage: 21 ~ 30VDC (powered by the bus)
- Output Voltage: 0~10VDC, each output max. 100mA
- Connections: EIB/KNX
- Current Consumed through Bus: <12mA
- Power Consumed through Bus: <360mW
- Working Temperature: -5 ~ 45℃
- Storage Temperature: -22 ~ 55℃
- Transport Temperature: -25 ~ 70℃
- Working Humidity: 0 ~ 93%RH
- Protection Level: IP 20, EN 60 529
- Wire Diameter: 0.5 – 4mm²
- Twisting Moment: 0.8N-m
- Installation: Standard 35mm DIN rail installation
- Product Size: 108 × 90 × 64 mm
- Weight: Approximately 293 g
Akubela KXAC-B1DV4 Dimmer Module is a premium 4 Gang 0-10V KNX add-on device designed for smart home and building control systems at best price. This Dimmer Module supports switch, relative, and absolute dimming functions along with scene and preset control, stair light function, bus reset, and manual dimming capability. With output status indication and error reporting, it delivers stable and efficient lighting control performance at best price.
Akubela KXAC-B1DV4 Dimmer Module Key Product Features:
- 4 Gang 0-10V dimming control
- Switch, relative, and absolute dimming functions
- Scene and preset control support
- Stair light function
- Bus reset function
- Manual dimming capability
- Status and error reporting
- Output status indication
- EIB/KNX connection method
- Standard 35mm DIN rail installation
Akubela KXAC-B1DV4 Dimmer Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1DV4
- Product Type: Dimmer Module
- Channels: 4 Gang 0~10V
- KNX Bus Voltage: 21 ~ 30VDC (powered by the bus)
- Output Voltage: 0~10VDC, each output max. 100mA
- Connections: EIB/KNX
- Current Consumed through Bus: <12mA
- Power Consumed through Bus: <360mW
- Working Temperature: -5 ~ 45℃
- Storage Temperature: -22 ~ 55℃
- Transport Temperature: -25 ~ 70℃
- Working Humidity: 0 ~ 93%RH
- Protection Level: IP 20, EN 60 529
- Wire Diameter: 0.5 – 4mm²
- Twisting Moment: 0.8N-m
- Installation: Standard 35mm DIN rail installation
- Product Size: 108 × 90 × 64 mm
- Weight: Approximately 293 g
Akubela KXAC-B1DV4 Dimmer Module is a premium 4 Gang 0-10V KNX add-on device designed for smart home and building control systems at best price. This Dimmer Module supports switch, relative, and absolute dimming functions along with scene and preset control, stair light function, bus reset, and manual dimming capability. With output status indication and error reporting, it delivers stable and efficient lighting control performance at best price.
Akubela KXAC-B1DV4 Dimmer Module Key Product Features:
- 4 Gang 0-10V dimming control
- Switch, relative, and absolute dimming functions
- Scene and preset control support
- Stair light function
- Bus reset function
- Manual dimming capability
- Status and error reporting
- Output status indication
- EIB/KNX connection method
- Standard 35mm DIN rail installation
Return Policy
Thanks for dealing with us at https://al-voip.com. Our policy allows our customers to return the products within14 days of payment; the product must be in the same condition as you received it.
Please submit the purchase receipt in order To complete your return process.
Our policy grants a full money-back guarantee for all purchases you made on our website in case you are not satisfied for any reason, faced a problem with the product or even received an incorrect order provided that Returns must be in good working order and an undamaged condition. Once you request a return, we will call you within 3 days.
Our policy grants you Zero fees when you return or replace a product but please note that only regular-priced products can be refunded, unfortunately, on-sale products cannot be refunded (replaced only).
Please note that you will not be eligible for a refund After 14 days of receiving the product.
If you have any additional questions or any problems, kindly contact us!
Shipping Policy
All orders are shipped from our headquarters in KSA to the whole kingdom and are delivered by one of our courier partners.
After placing an order, you will receive an email or SMS to confirm the order and to keep you up to date with your order you will receive an email or SMS notification with everything you need to know
We strive to ship the order as soon as possible but it depends on when your order was placed as it may take up to 6 days to be shipped
For any inquiries, please contact us.
Product Details
- Brand: Akubela
- Model Name: KXAC-B1DV4
- Channels: 4 Gang 0~10V
- Installation: Standard 35mm DIN rail installation
Tech Specs
- KNX Bus Voltage: 21 ~ 30VDC
- Bus Current: <12mA
- Bus Power Consumption: <360mW
- Output Voltage: 0~10VDC (max 100mA each channel)
- Protection Level: IP 20
