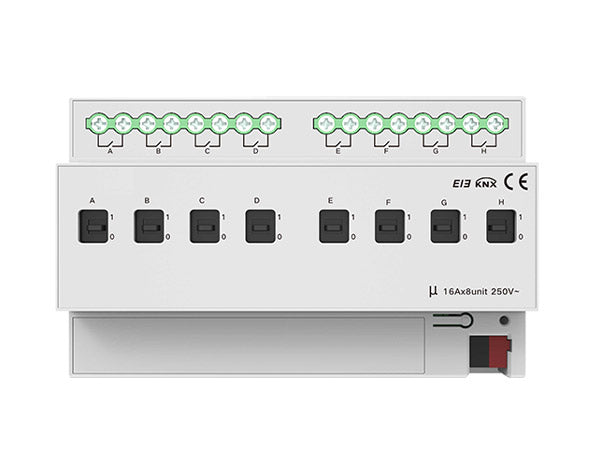

Akubela KXAC-B1R8A16 – Switch Module, 8 Gang 16A KNX Smart Control, 250V-440VAC, Manual & Logic Functions, DIN Rail Design
Akubela KXAC-B1R8A16 Switch Module is an 8 gang 16A KNX smart control device designed for reliable load switching at best price. This Switch Module integrates manual operation, scheduled timing with delayed on/off functions, and real-time status feedback. With eight independent output channels, logical functions including AND, OR, XOR, and gate operations, plus configurable scene support, the Akubela KXAC-B1R8A16 Switch Module delivers flexible, energy-efficient, and safe control for smart home systems.
![Akubela KXKS-B1B8-EU KNX 8 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B6-EU KNX 6 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B4-EU KNX 4 Button Scene Panel | AL-VoIP Store]()
![Akubela KXKS-B1B2-EU KNX 2 Button Scene Panel | AL-VoIP Store]()
![Akubela LY/KH440111F Shade Motor (KNX) | AL-VoIP Store]()
Akubela KXAC-B1R8A16 – Switch Module, 8 Gang 16A KNX Smart Control, 250V-440VAC, Manual & Logic Functions, DIN Rail Design
Brand: Akubela
Category: Switch Module
Akubela KXAC-B1R8A16 Switch Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1R8A16
- Product Type: Switch Module
- Channels: 8 Gang
- Connections: EIB/KNX
- Power Supply: 21 ~ 30VDC (powered by bus)
- Rated Voltage: 250V/440VAC, 50/60Hz
- Output Switch Current: AC1 20A/230V; AC3 16A/230V; EN60669 fluorescent load 16A/230V
- Working Temperature: -5 ~ 45°C
- Working Humidity: 0 ~ 93%RH
- Product Size: 144 × 90 × 64 mm
- Weight: 0.51 kg
- Compliance: CE (EMC and Low Voltage), EN50 090-2-2
Akubela KXAC-B1R8A16 Switch Module is an 8 gang 16A KNX smart control device designed for reliable load switching at best price. This Switch Module integrates manual operation, scheduled timing with delayed on/off functions, and real-time status feedback. With eight independent output channels, logical functions including AND, OR, XOR, and gate operations, plus configurable scene support, the Akubela KXAC-B1R8A16 Switch Module delivers flexible, energy-efficient, and safe control for smart home systems.
Akubela KXAC-B1R8A16 Switch Module Key Product Features:
- 8 gang independent output channels
- Supports manual on/off operation
- Timing function with delayed turn on/off
- Logical functions: AND, OR, XOR, and gate
- Real-time switch status feedback
- Configurable scene functionality
- Rated voltage 250V/440VAC, 50/60Hz
- Output current compliant with AC1, AC3, and EN60669 standards
- CE compliant (EMC and low voltage standards)
- Easy setup and operation
Akubela KXAC-B1R8A16 Switch Module Key Product Specifications:
- Manufacturer: Akubela
- Model: KXAC-B1R8A16
- Product Type: Switch Module
- Channels: 8 Gang
- Connections: EIB/KNX
- Power Supply: 21 ~ 30VDC (powered by bus)
- Rated Voltage: 250V/440VAC, 50/60Hz
- Output Switch Current: AC1 20A/230V; AC3 16A/230V; EN60669 fluorescent load 16A/230V
- Working Temperature: -5 ~ 45°C
- Working Humidity: 0 ~ 93%RH
- Product Size: 144 × 90 × 64 mm
- Weight: 0.51 kg
- Compliance: CE (EMC and Low Voltage), EN50 090-2-2
Akubela KXAC-B1R8A16 Switch Module is an 8 gang 16A KNX smart control device designed for reliable load switching at best price. This Switch Module integrates manual operation, scheduled timing with delayed on/off functions, and real-time status feedback. With eight independent output channels, logical functions including AND, OR, XOR, and gate operations, plus configurable scene support, the Akubela KXAC-B1R8A16 Switch Module delivers flexible, energy-efficient, and safe control for smart home systems.
Akubela KXAC-B1R8A16 Switch Module Key Product Features:
- 8 gang independent output channels
- Supports manual on/off operation
- Timing function with delayed turn on/off
- Logical functions: AND, OR, XOR, and gate
- Real-time switch status feedback
- Configurable scene functionality
- Rated voltage 250V/440VAC, 50/60Hz
- Output current compliant with AC1, AC3, and EN60669 standards
- CE compliant (EMC and low voltage standards)
- Easy setup and operation
